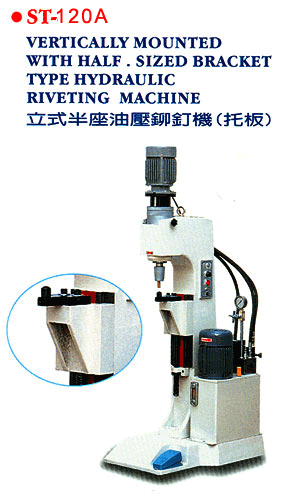

A-TYPE VERTICAL WITH HALF-SIZED VRACKET TYPE


MEDIUM SIZE HYDRAULIC

RIVETING MACHINE
This machine is suitable for riveting

items which are under 20mm.

For example: Crane, big type of all

sorts of moveable wheels, big type

of pincers, all sorts of chains, big

type of clutch railings, accessory

parts of office chairs/desks, auto or

motorcycle parts, mechanical

parts....etc.
Item Model ST-120
Riveting Capacity Solid Rivet 5-15ψ
Max.Stroke 35 m/m
Max.H.Die-head to bed 180 m/m
Spindle Revolution 1720 RPM
Max.depth 220 m/m
Drive Motor 2 x 2 HP

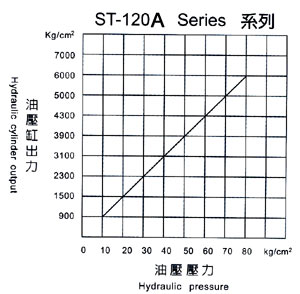

pressure used (kg/cm2) 20-70 kg
Adjusting work time 1-6 Sec
Net Weight (kg) 680 kg
Height of Machine m/m 1750
Width m/m 560
Length m/m 800
