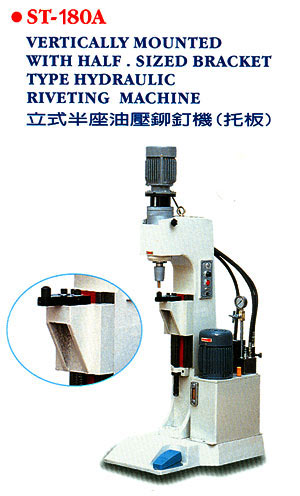

A-TYPE VERTICAL WITH HALF-SIZED VRACKET TYPE


MEDIUM SIZE HYDRAULIC

RIVETING MACHINE
This machine is suitable for riveting

items which are under 20mm.

For example: Crane, big type of all

sorts of moveable wheels, big type

of pincers, all sorts of chains, big

type of clutch railings, accessory

parts of office chairs/desks, auto or

motorcycle parts, mechanical

parts....etc.
Item Model ST-180A
Riveting Capacity Solid Rivet 10-30ψ
Max.Stroke 30 m/m 75 m/m
Max.H.Die-head to bed 190 m/m
Spindle Revolution 1160 RPM
Max.depth 320 m/m
Drive Motor 5 x 3 HP
pressure used (kg/cm2) 20-70 kg
Adjusting work time 1-6 or 1-12 Sec
Net Weight (kg) 1400 kg
Height of Machine m/m 2300
Width m/m 750
Length m/m 1020
