R-TYPE HORIZONTAL WITH TWIN HEADS TYPE

HORIZONTALLY MOUNTED WITH TWIN HEADS TYPE HYDRAULIC
RIVETING MACHINE
This model is suitable for the double side riveting of all sorts of conveyor chains, all sorts of pincers, pliers, secateurs and hinges which are under 8mm.
Item Model ST-180R
Riveting Capacity Solid Rivet 5-15ψ
Max.Stroke 35 m/m
Max.H.Die-head to bed 180 m/m
Spindle Revolution 1720 RPM
Max.depth 220 m/m
Drive Motor 2 x 2 HP

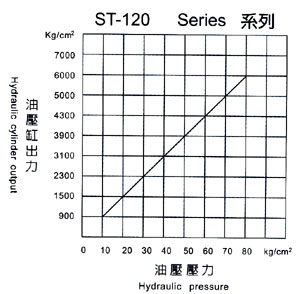

pressure used (kg/cm2) 20-70 kg
Adjusting work time 1-6 Sec
Net Weight 680 kg
Height of Machine m/m 1750
Width m/m 560
Length m/m 1000
