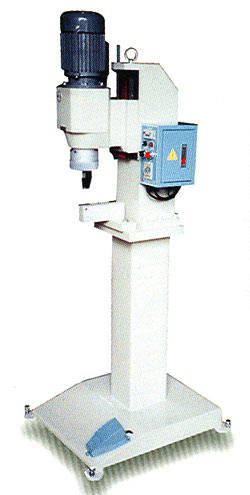

L-TYPE VERTICAL OPPOSITE JOINT RIVETING TYPE


VERTICALLY OPPOSITE JOINT
RIVETING TYPE PNEUMATIC
RIVETING MACHINE
This model is suitable for the riveting items which are under 8mm.
For example: All sorts of bend chairs, all sorts of chairs, movie director chairs and all sorts of folding table big type brake railing.
Item Model ST-640M
Riveting Capacity Solid Rivet 0.5-8ψ
Hollow Rivet 1-12ψ
Max.Stroke 45 m/m
Max.H.Die-head to bed Min  0
Max 125
Spindle Revolution 1720 RPM
Max.depth 175 m/m
Drive Motor 1/2 HP
pressure used (kg/cm2) 2-7 kg
Adjusting work time 1-6 Sec
Net Weight 180 kg
Height of Machine (m/m) 1550
Width (m/m) 520
Length (m/m) 650
