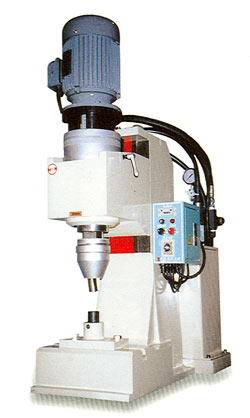

¡@BIG SIZE DESKTOP HYDRAULIC RIVETING MACHINE
This machine is suitable for riveting items which are under 20mm.
For example: Crane,big type of pincers,all sorts of chains,big type of cluth railings,accessory parts of office chairs/desks,auto or motorcycle parts,mechanical parts...etc.
Item Model¡@ST-120S
Riveting Capacity Solid Rivet 5-20\¢
Max.Stroke 35 m/m
Max.H.Die-head to bed 220 m/m
Spindle Revolution 1720 RPM
Max.depth 220 m/m
Drive Motor 2/2 HP

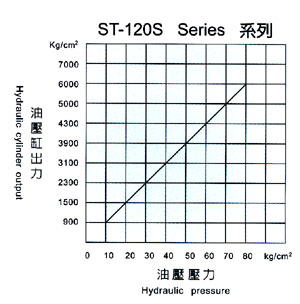

pressure used (kg/cm2) 20-70 kg
Adjusting work time 1-6 Sec
Net Weight 490 kg
Height of Machine m/m 1270
Width m/m 500
Length m/m 800
