@S-TYPE DESKTOP WITH FULL MOVEABLE BRACKET TYPE

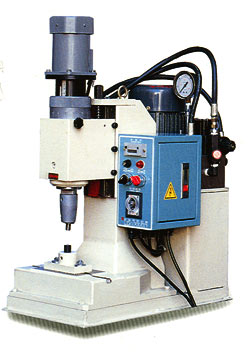

MINE SIZE DESKTOP HYDRAULIC RIVETING MACHINE
The model ST-60S Series are suitable for the precision micro processing under 0.5mm
5mm.
Ex: Clock/watch head, watch band, sliders/bases/cases of electronics & electronic appliance, accessories or parts of auto
or motorcycle , optical instrument and all sorts of hardware... etc or other special riveting.
Item Model@ST-60S
Riveting Capacity Solid Rivet 0.5-5¢
Max.Stroke 30 m/m
Max.H.Die-head to bed 120 m/m
Spindle Revolution 1500 RPM
Max.depth 100 m/m
Drive Motor 1/8 x 1/2 HP
pressure used (kg/cm2) 5-70 kg
Adjusting work time 1-6 Sec
Net Weight 90 kg
Height of Machine m/m Max 800@Min 600
Width m/m 310
Length m/m 500
