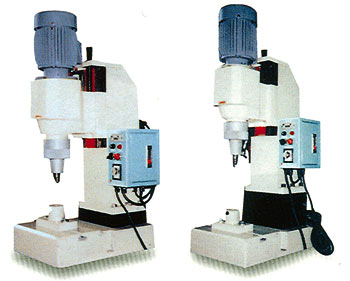

S-TYPE DESKTOP WITH FULL MOVEABLE BRACKET TYPE

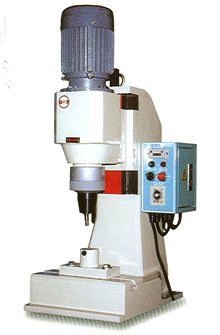

DESKTOP TYPE, BUT EXTRA FIXED WITH AN IRON PLATE WHICH HIGHER THAN THE ORIGINAL TO INCREASE PROCESSING RANGE
　
DESKTOP FREE STANDING TYPE
PNEUMATIC RIVETING MACHINE
 Suitable for riveting under 8mm's work.
For example: All sorts of mechanical parts, auto or motorcycle parts, all sorts of pincers, scissors, all sorts of conveyor chains, accessories office desk, brake railing, clutch, all sorts of key products, medium or small size of moveable wheels....etc.
Optional: support (table)
Item Model　ST-640S
Riveting Capacity Solid Rivet 0.5-8ψ　Hollow Rivet 1-12ψ
Max.Stroke 45 m/m
Max.H.Die-head to bed 220 m/m
Spindle Revolution 1720 RPM
Max.depth 175 m/m
Drive Motor 1/2 HP
pressure used (kg/cm2) 2-7 kg
Adjusting work time 1-6 Sec
Net Weight 140 kg
Height of Machine (m/m) Max 850　Min 750
Width (m/m) 320
Length (m/m) 450
