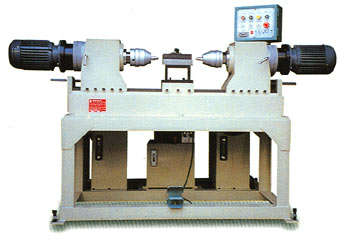

R-TYPE HORIZONTAL WITH TWIN HEADS TYPE

HORIZONTALLY MOUNTED WITH TWIN HEADS TYPE HYDRAULIC
RIVETING MACHINE
This model is suitable for the double side riveting of all sorts of conveyor chains, all sorts of pincers, pliers, secateurs and hinges which are under 8mm.
Item Model ST-120R
Riveting Capacity Solid Rivet 5-20ψ
Max.Stroke 35 m/m
Max.H.Die-head to bed 220 m/m
Spindle Revolution 1720 RPM
Max.depth 220 m/m
Drive Motor 2 x 2 HP

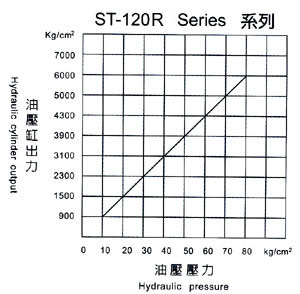

pressure used (kg/cm2) 20-70 kg
Adjusting work time 1-6 Sec
Net Weight 1500 kg
Height of Machine m/m 1600
Width m/m 2150
Length m/m 1000
