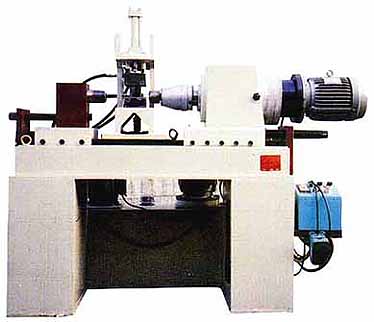

ST-180R1


BIG SIZE HYDRAULIC RIVETING MACHINE
 This machine can directly rivet low carbon steel up to 30mm diameter and also can spread the tube's diameter up to 75mm to avoid the process of preheating.

　

Item

ST-180R1

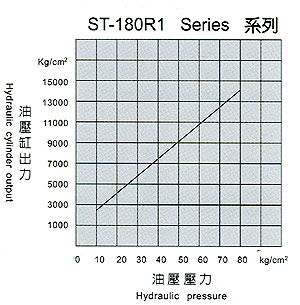

Riveting Capacity Solid Rivet 10-30 Airpressure used(kg/cm2) 20~70kg
Max.Stroke 50 m/m Adjusting work time 1-6 OR 1-12 Sec
Max.H.Die-head to bed 190 m/m Net Weight 2800 kg
Spindle Revolution 1170 RPM Height of Machine m/m 1600m/m
Max.depth 200m/m Width m/m 2500 m/m
Drive Motor 5 x 3 HP Length m/m 1000m/m
