¡@R1-TYPE HORIZONTAL WITH SINGLE HEAD TYPE

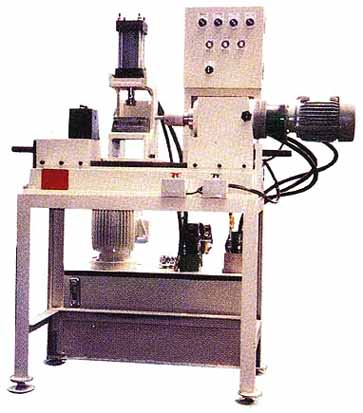

HORIZONTALLY MOUNTED WITH SINGLE HEAD TYPE HYDRAULIC RIVETING MACHINE
This model is suitable for the double side riveting of all sorts of conveyor chains, all sorts of pincers, pliers, secateurs and hinges which are under 8mm.

¡@

Item Model ST-100R1
Riveting Capacity Solid Rivet 5-15¢
Max.Stroke 35 m/m
Max.H.Die-head to bed 220 m/m
Spindle Revolution 1720 RPM
Max.depth 180 m/m
Drive Motor 1 x 1 HP
pressure used (kg/cm2) 5-70 kg
Adjusting work time 1-6 Sec
Net Weight 1000 kg
Height of Machine m/m 1600
Width m/m 1200
Length m/m 600
