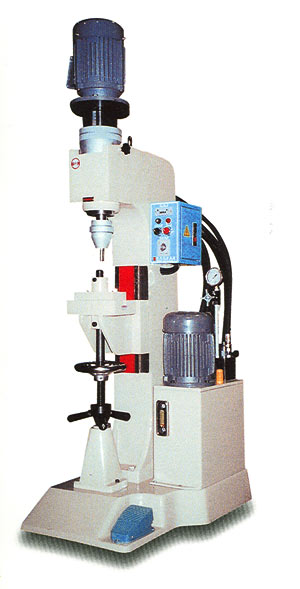

*-TYPE VERTICAL WITH FULL BRACKET TYPE

MEDIUM SIZE HYDRAULIC RIVETING MACHINE
This machine is suitable for riveting items which are under 20mm.
For example:Crane,big type of all sorts of moveable wheels, big type of pincers, all sorts of chains, big type of culutch railings, accessory parts of office chairs/desks, auto or motorcycle parts, mechanical parts...etc.
Item Model ST-120
Riveting Capacity Solid Rivet 5-15ψ
Max.Stroke 35 m/m
Max.H.Die-head to bed 180 m/m
Spindle Revolution 1720 RPM
Max.depth 220 m/m
Drive Motor 2 x 2 HP

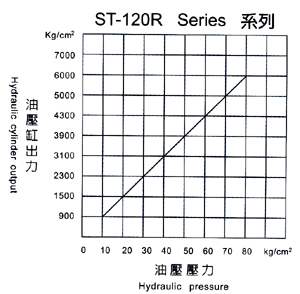

pressure used (kg/cm2) 20-70 kg
Adjusting work time 1-6 Sec
Net Weight (kg) 680 kg
Height of Machine m/m 1750
Width m/m 560
Length m/m 800
