＊-TYPE VERTICAL WITH FULL BRACKET TYPE


MEDIUM/SMALL SIZE HYDRAULIC RIVETING MACHINE
This machine is suitable for riveting items which are under 15mm.
For example: Crane, big type of all sorts of moveable wheels, big type of pincers, all sorts of chains, big type of clutch railings, accessory parts of office chairs/desks, auto or motorcycle parts, mechanical parts...etc.
Item Model ST-100
Riveting Capacity Solid Rivet 5-12ψ
Max.Stroke 35 m/m
Max.H.Die-head to bed Min30mm Max 220mm
Spindle Revolution 1720 RPM
Max.depth 180 m/m
Drive Motor 1 x 1 HP

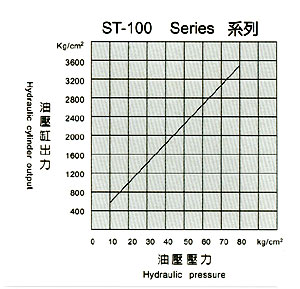

pressure used (kg/cm2) 5-70 kg
Adjusting work time 1-6 Sec
Net Weight (kg) 370 kg
Height of Machine m/m 1700
Width m/m 500
Length m/m 800
