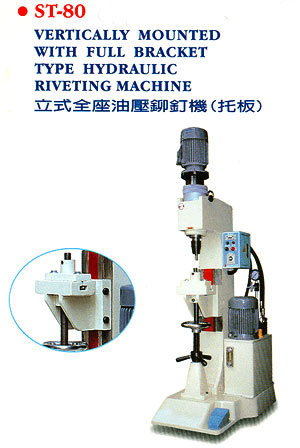

＊-TYPE VERTICAL WITH FULL BRACKET TYPE

¡@


VERTICALLY MOUNTED
WITH FULL BRACKET
TYPE HYDRAULIC
RIVETING MACHINE
Suitable for riveting under 8mm's work.
For example: All sorts of mechanical parts, auto or motorcycle parts, all sorts of pincers, scissors, all sorts of conveyor chains, accessories of office desk, brake railing, clutch, all sorts of key products, medium or small size of moveable wheels...etc.
Item Model ST-80
Riveting Capacity Solid Rivet 1-8£r Hollow 3-14£r
Max.Stroke 35 m/m
Max.H.Die-head to bed Min 50mm /  Max 250mm
Spindle Revolution 1720 RPM
Max.depth 180 m/m
Drive Motor 1/2 x 1 HP
pressure used (kg/cm2) 5-70 kg
Adjusting work time 1-6 Sec
Net Weight 340kg
Height of Machine m/m 1600
Width m/m 480
Length m/m 700

¡@
