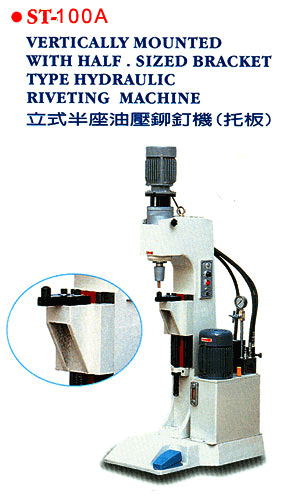

A-TYPE VERTICAL WITH HALF-SIZED VRACKET TYPE




VERTICALLY MOUNTED
WITH HALF BRACKET
TYPE HYDRAULIC
RIVETING MACHINE

This model is suitable for the riveting items which are under 8 mm.
for example : All sorts of bend chairs, all sorts of chairs, movie director chairs and all sorts of folding table big type brake railing.
Item Model ST-100
Riveting Capacity Solid Rivet 5-12ψ
Max.Stroke 35 m/m
Max.H.Die-head to bed Min30mm Max 220mm
Spindle Revolution 1720 RPM
Max.depth 180 m/m
Drive Motor 1 x 1 HP
pressure used (kg/cm2) 5-70 kg
Adjusting work time 1-6 Sec
Net Weight (kg) 370 kg
Height of Machine m/m 1700
Width m/m 500
Length m/m 800
