＊-TYPE VERTICAL WITH FULL BRACKET TYPE

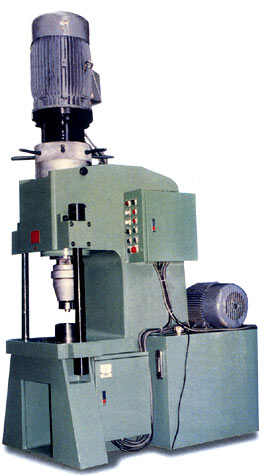

SUPER BIG SIZE HYDRAULIC RIVETING MACHINE
This machine can directly rivet low carbon steel up to 50mm diameter and also can spread the tube's diameter up to 100mm to avoid the process of preheating.
Item Model ST-250
Riveting Capacity Solid Rivet 50 m/m
Hollow Rivet 100 m/m
Max.Stroke 50 m/m
Max.H.Die-head to bed 200 m/m
Spindle Revolution 1720 RPM
Max.depth 450 m/m
Drive Motor 20 x 30 HP
pressure used (kg/cm2) 20-80 kg
Adjusting work time 1-6 or 1-12 Sec
Net Weight (kg) kg 5300 kg
Height of Machine m/m 3700
Width m/m 1550
Length m/m 1860
